Product Series / RV electric roof system

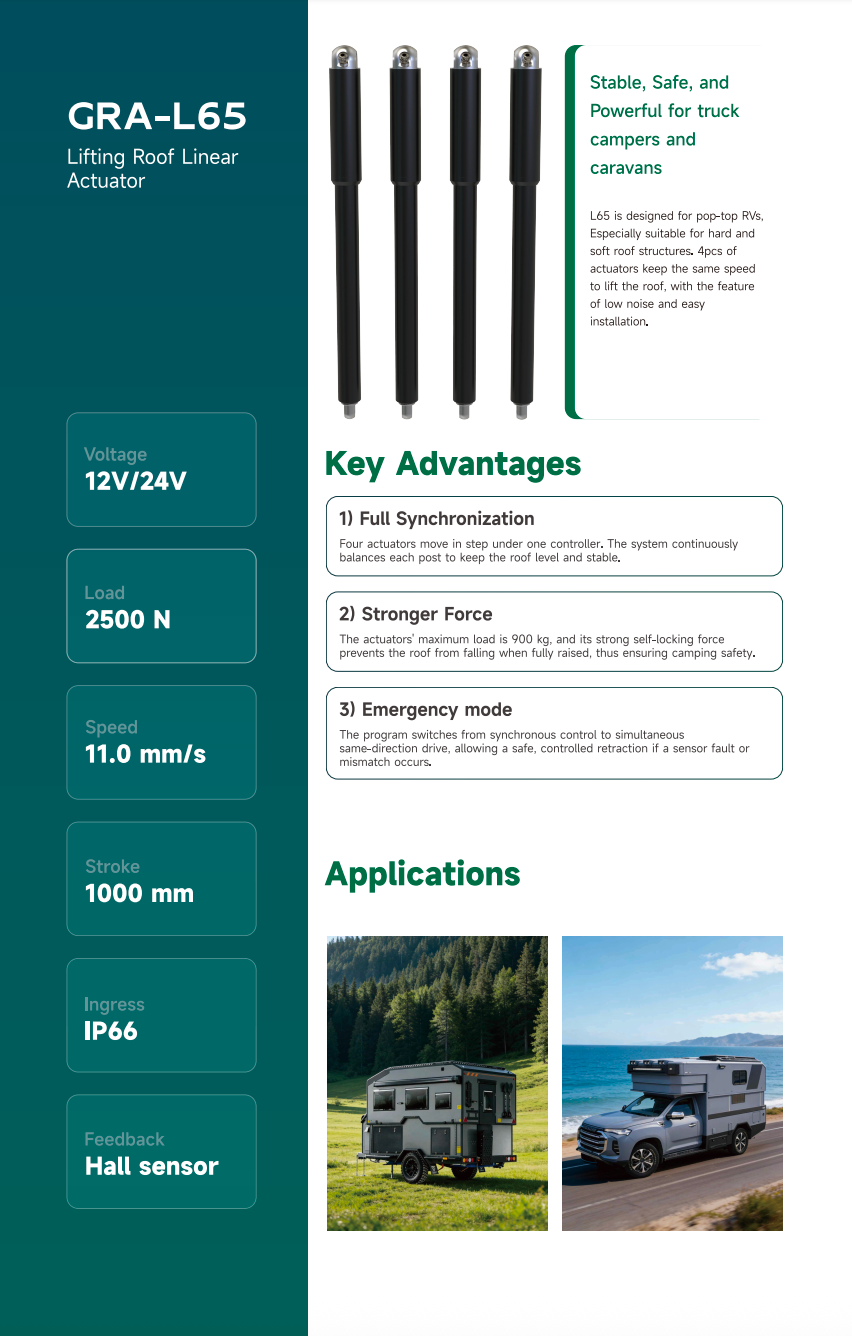

Four Synchronous Lifting LinearActuators
L65 is designed for pop-top RVs, Especially suitable for hard and soft roof structures. 4pcs of actuators keep the same speed to lift the roof, with the feature of low noise and easy installation.
Voltage: 12V/24V
Load: 2500 N
Speed: 11.0 mm/s
Max Stroke: 1000 mm
Ingress: IP66
Feedback: Hall sensor
1) Full Synchronization
Four actuators move in step under one controller. The system continuously balances each post to keep the roof level and stable.
2) Stronger Force
The actuators' maximum load is 900 kg, and its strong self-locking force prevents the roof from falling when fully raised, thus ensuring camping safety.
3) Emergency mode
The program switches from synchronous control to simultaneous same-direction drive, allowing a safe, controlled retraction if a sensor fault or mismatch occurs.
Four actuators move in step under one controller. The system continuously balances each post to keep the roof level and stable.
2) Stronger Force
The actuators' maximum load is 900 kg, and its strong self-locking force prevents the roof from falling when fully raised, thus ensuring camping safety.
3) Emergency mode
The program switches from synchronous control to simultaneous same-direction drive, allowing a safe, controlled retraction if a sensor fault or mismatch occurs.
